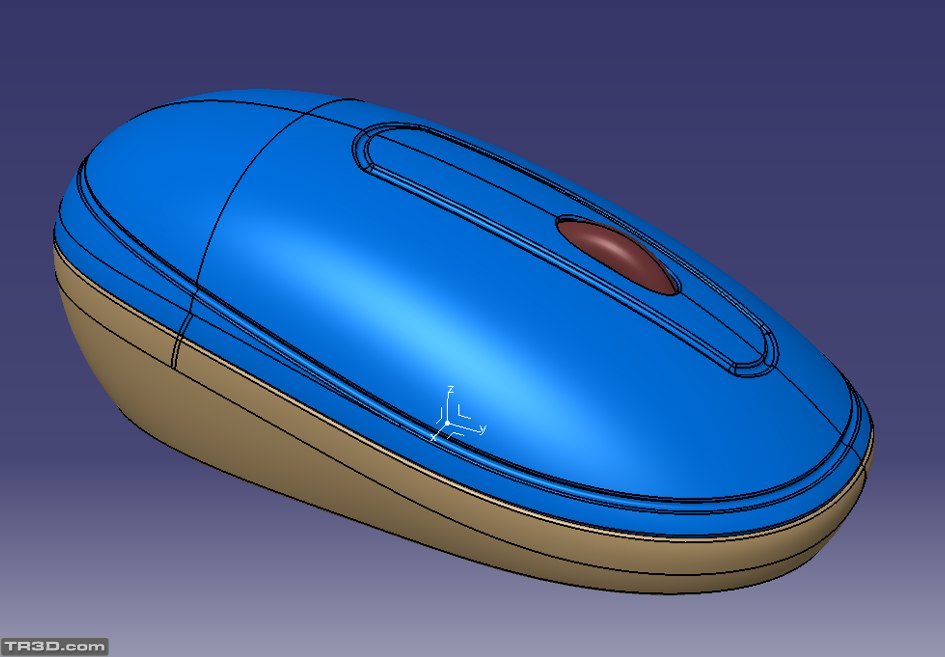

Catia V5 Mouse/Fare (Surfaces) Modelleme/ Generative Shape Design

Module : Part Design and Generative Shape Design

CAD Files :*.step,*.igs ,*.catpart https://drive.google.com/open?id=0B6s...

00:00 - 02:53 Blueprint

04:27 Combine

05:26 Multi Section Surfaces

07:45 Multi Section Surfaces II

08:10 Parallel Curve & Split Surfaces

08:43 Connect Curve and Multi Section Surfaces III

11:48 Fillet Edge12:05 Closed Surfaces

15:20 Split ( Part Design )

15:37 Intersection Curve and Swept Surfaces

17:04 Shell

21:39 End

Hazırlayan: 3drawing_net (Erhan Biçkioğlu)
